Vortex Ranger HD 3000 LRF

Being able to determine the distance to a potential animal quickly is one of the most important things in hunting. It not only tells you whether it lies within your effective range, but also whether you need to account for bullet drop.

Nowadays we have the luxury of rangefinders built into our optics, although this usually comes at a considerable price. So when I saw the new Ranger HD 3000 LRF binoculars from Vortex, they immediately caught my attention.

Clean and simple design

These 10×42 binoculars are built with quality components, including multicoated, high-definition glass that reduces chromatic aberration and improves colour fidelity, edge-to-edge sharpness and light transmission. The built-in laser rangefinder has a maximum reflective range of 3,000yd, and between 1,500 and 1,800yd on non-reflective objects such as trees and deer. What particularly appealed to me, however, was their clean, simple design.

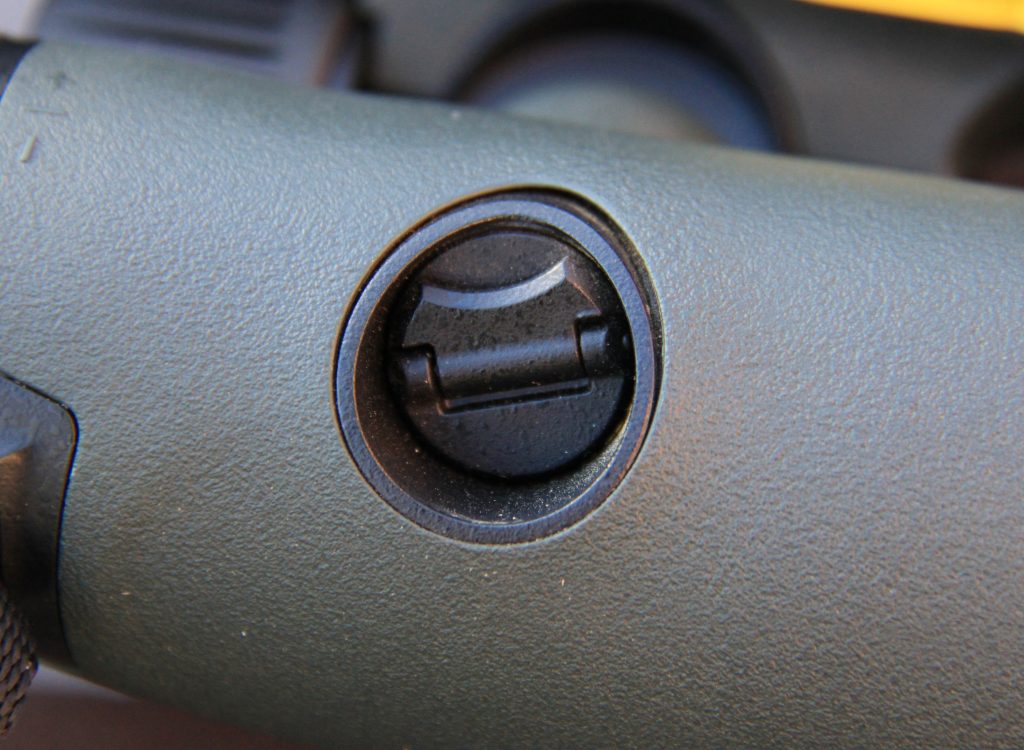

The laser is housed within the rubber-armoured magnesium alloy body, so there are no protrusions, bulges or additional lenses sticking out. In fact the only external indications that these are LRF binoculars at all is the small, recessed, toolless screw cap covering the single CR123 battery under the left-hand tube, and the two flat rubber buttons on top of the prism housing. This makes them aesthetically pleasing and very straightforward and intuitive to operate, even one-handed.

Easy to operate

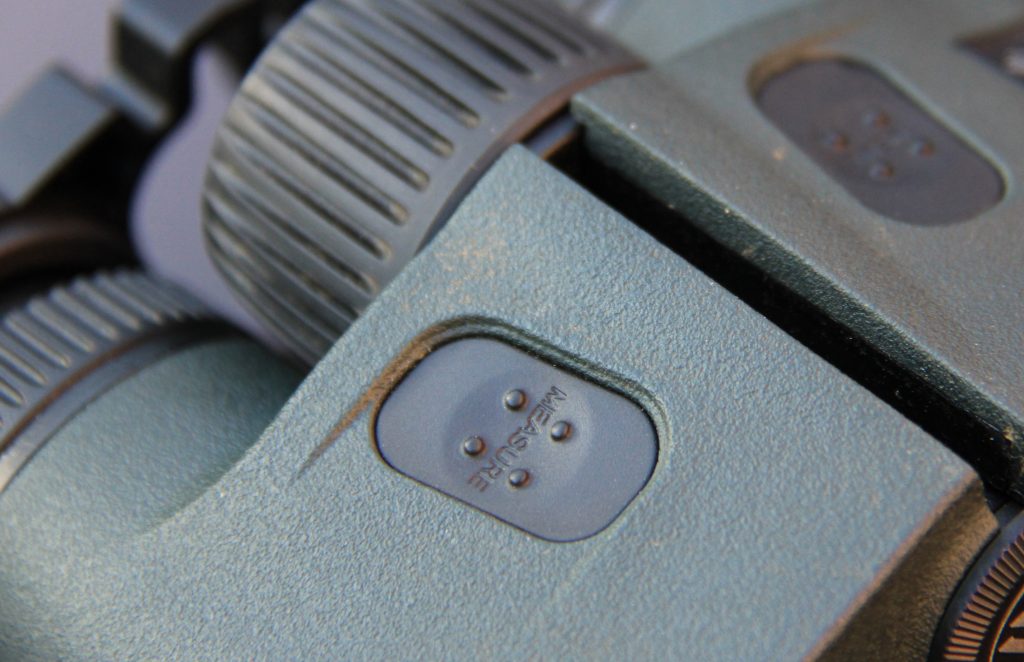

A press of the right-hand button activates the red OLED display and the small circular aiming reticle in the right-hand lens. A second press fires the laser, and the display returns the distance within a split second, even at extended ranges.

Holding down the left-hand button for five seconds brings up the menu options, which includes Normal, First and Last Target modes; Horizontal Component Distance (HCD); Line of Sight (LOS) and Scan ranging modes; measurement in metres or yards; five brightness settings for the display; and timings for automatic shut-off. The same button is used to cycle through the menus and the right-hand button makes your selection.

It sounds a lot, but in practice the system is very simple to use. My only slight criticism is that the abbreviated menu titles can be hard to decipher until you become familiar with them. It’s a minor quibble in an otherwise commendable package.

The brightness settings enable you to tailor the display to accommodate use in bright or low-light conditions, and the HCD mode provides angle-compensated distances – ideal for when you are shooting in steep terrain. The only feature I struggled to find a real-life use for was the Scan mode, which constantly updates the distance as you pan. This might suit some when assessing firing options from a fixed position, but I prefer to range prominent landmarks around my arc of fire for quick reference.

At 36oz (with battery, eyepiece caps and neck strap attached) they are not the lightest LRF binoculars on the market, but I found the extra weight and solid feel reassuring. They proved more than capable of taking the knocks that my equipment inevitably gets, whether bouncing around on the dashboard of my pickup or out on a stalk.

Overall performance

Most importantly, the Ranger HD 3000 provides a clear, bright and crisp image, excellent low-light performance and accurate distance readings. That’s all you can reasonably ask of any rangefinding binoculars – especially a pair priced well under the £1,000 mark and supplied with its own GlassPak harness, cushioned neck strap, lens cloth, lens and eyepiece covers and battery, and comes covered by Vortex’s full warranty, including the electronics. For me that makes the Vortex Ranger HD 3000 LRF one of the best value-for-money options currently available.

Technical specification

• Magnification: 10x
• Objective lens diameter: 42 mm
• Eye relief: 17.0mm
• Angular field of view: 6.4°
• Close focus: 6.0ft
• Interpupillary distance: 55-74mm
• Linar field of view: 335ft @ 1,000yd
• Range reflective: <3,000yd
• Range tree: <1,800yd
• Range deer: <1,500yd
• Minimum range: 6yd
• Height: 6.7in
• Width: 5.1in
• Weight: 32.4oz
• Supplier: Country Sports Wholesale Ltd
• 01462 743223, Email: service@cswmail.co.uk,
• Web: ranger.csw-online.co.uk
• Price: £799
